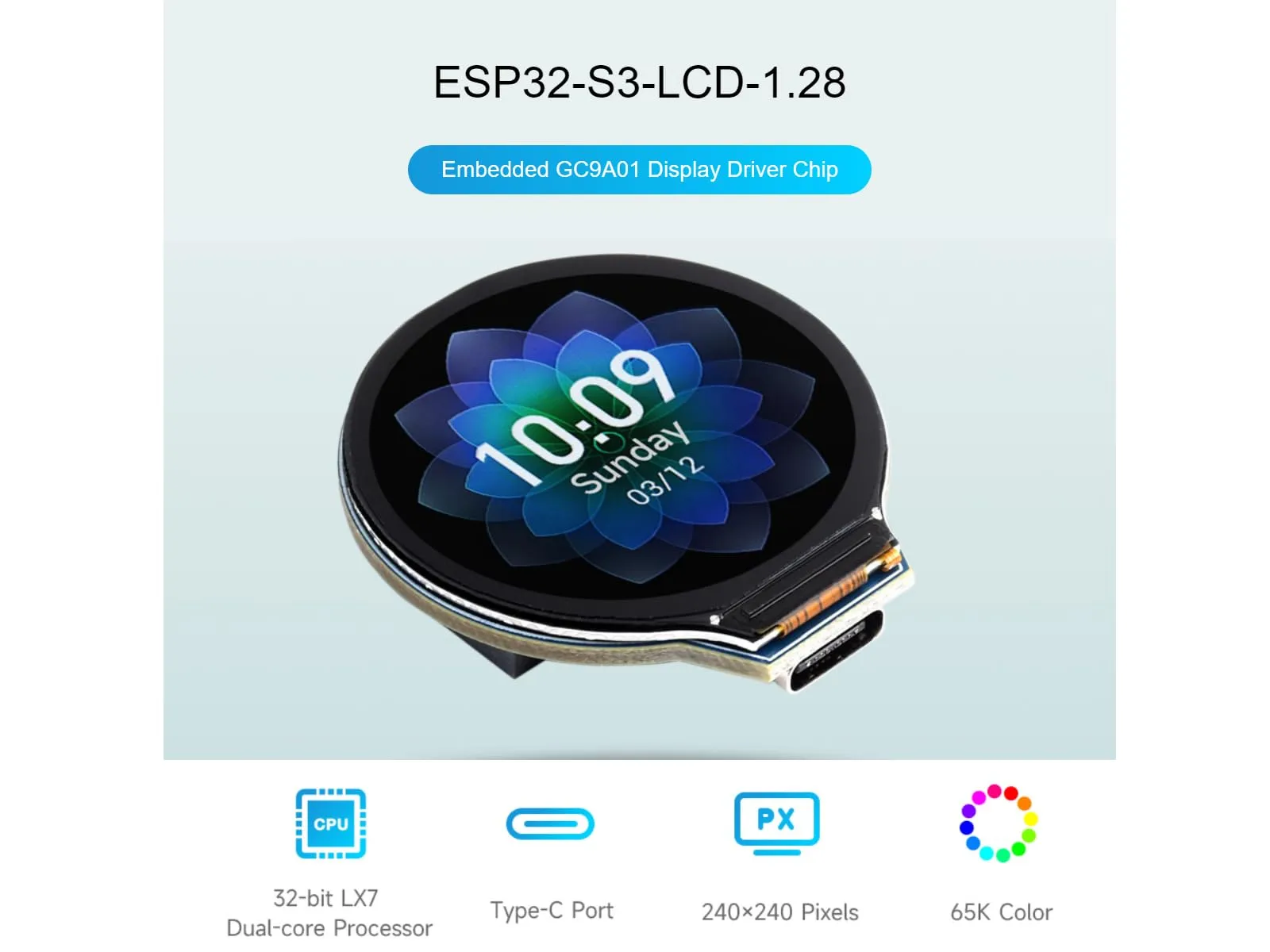

ESP32-S3 Development Board with 1.28inch Round LCD Display,32-bit LX7 Dual-core Processor,Support 2.4 GHz Wi-Fi and Bluetooth 5(LE),Embedded GC9A01 Driver Chip

EAN: 0790885891304
Attualmente questo prodotto non è disponibile sul nostro sito
Assistenza Clienti

Per qualsiasi esigenza Scrivici su WhatsApp, oppure visita la pagina contattaci.

Spedizione Gratuita

Spedizione gratuita in tutta Italia, per maggiorni informazioni: pagina spedizioni.

Ulteriori Informazioni

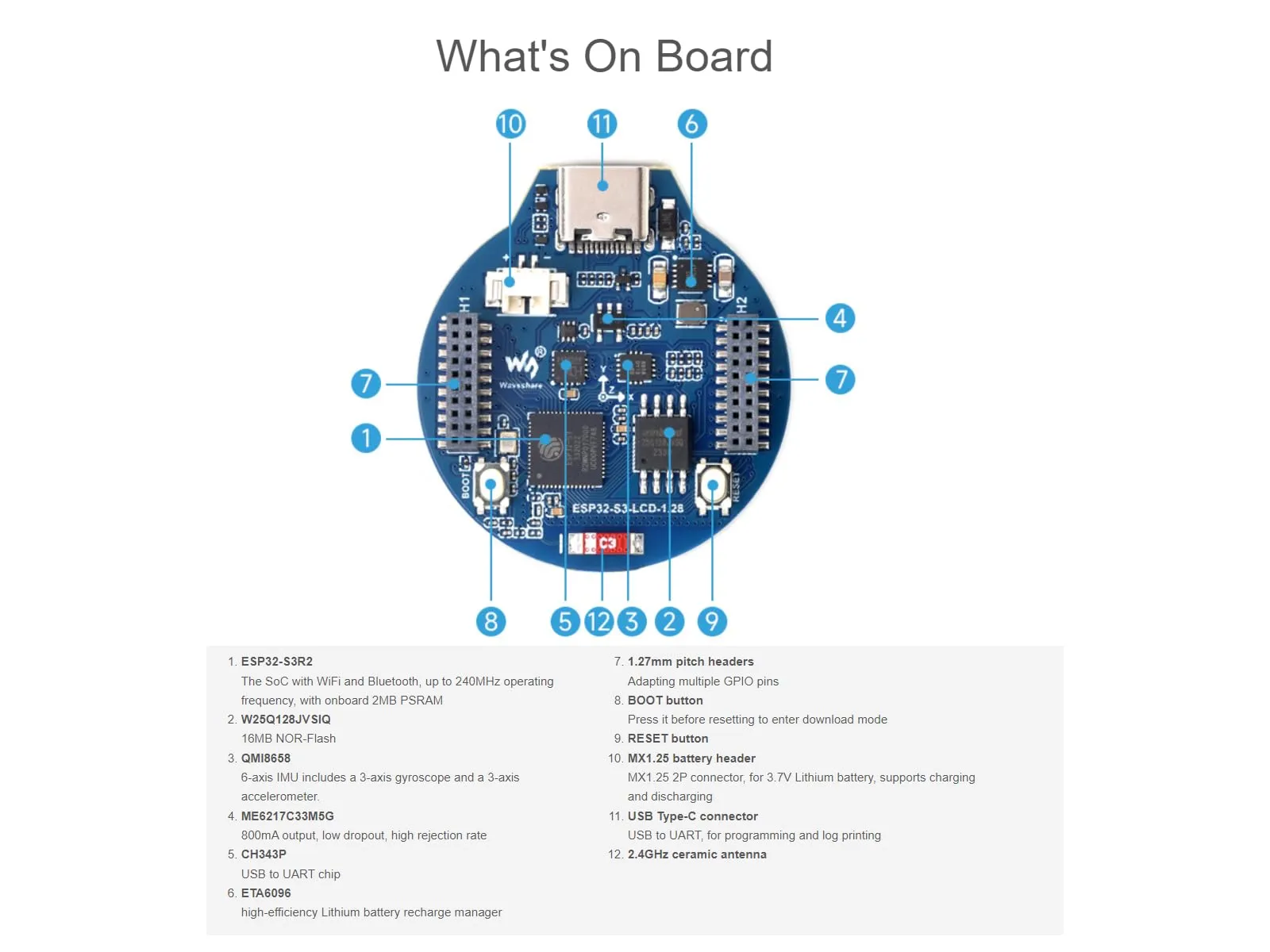

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna.Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

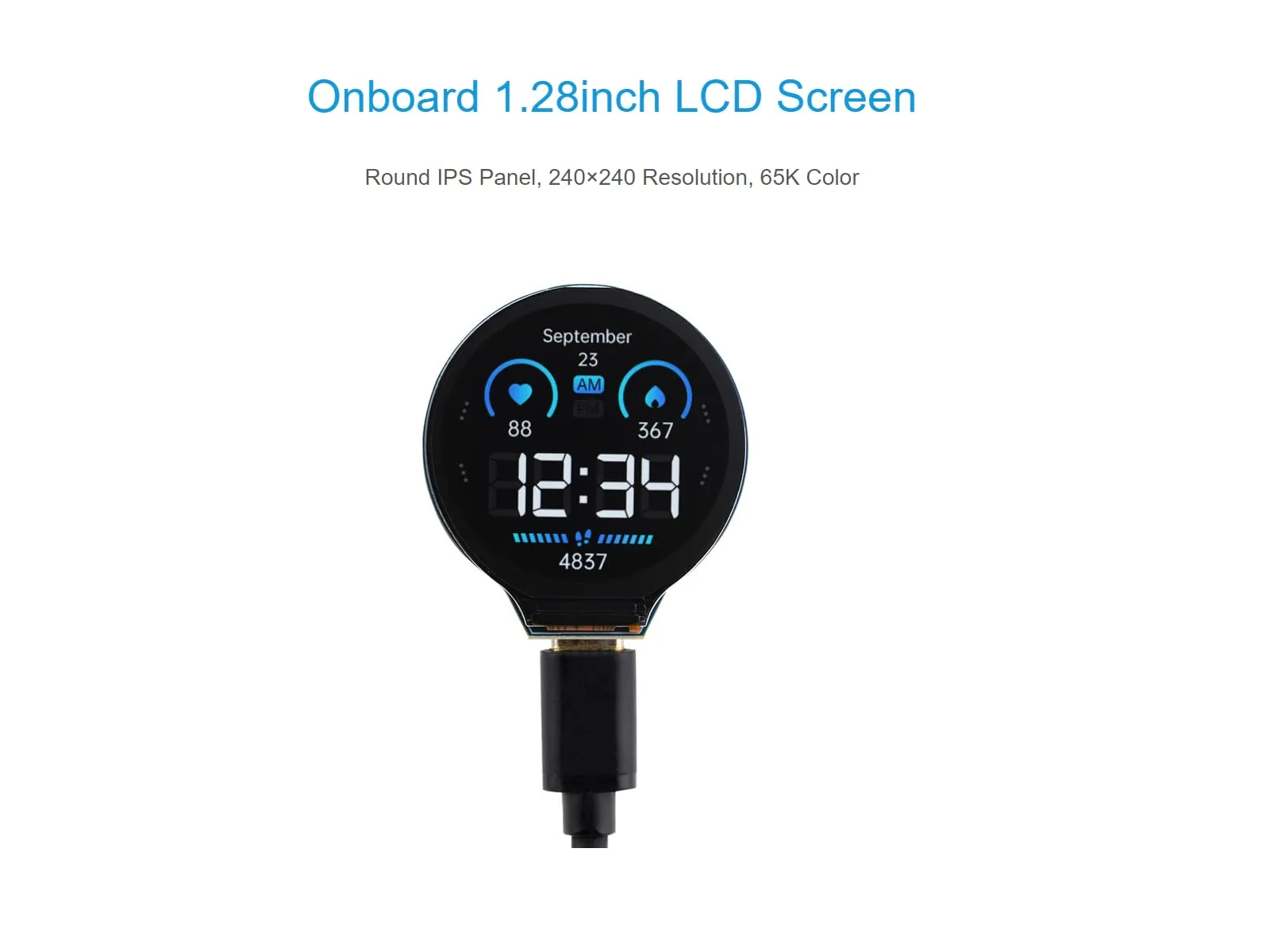

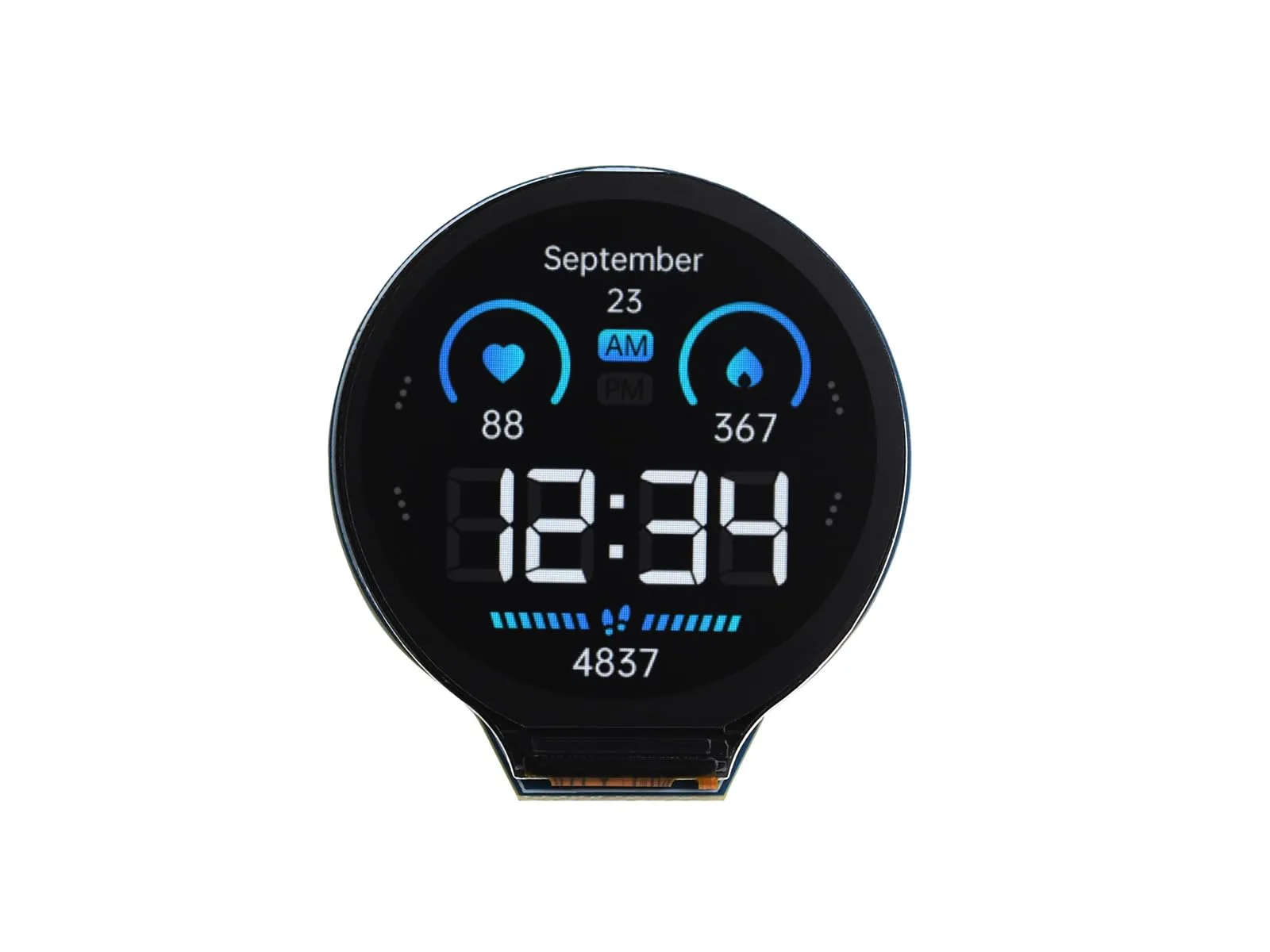

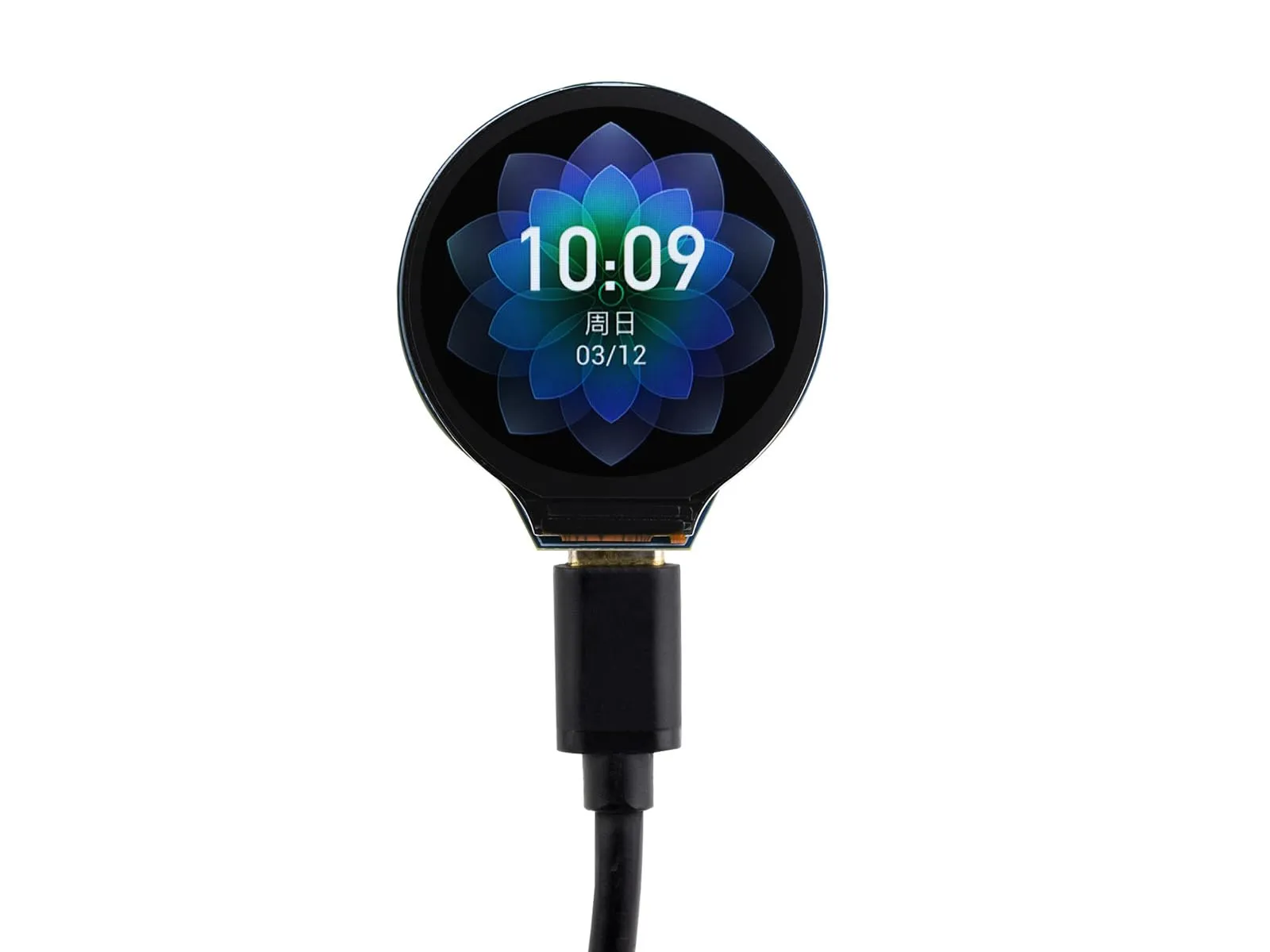

Type-C connector, keeps it up to date, easier to use.Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V lithium battery recharge/discharge header and GPIO headers

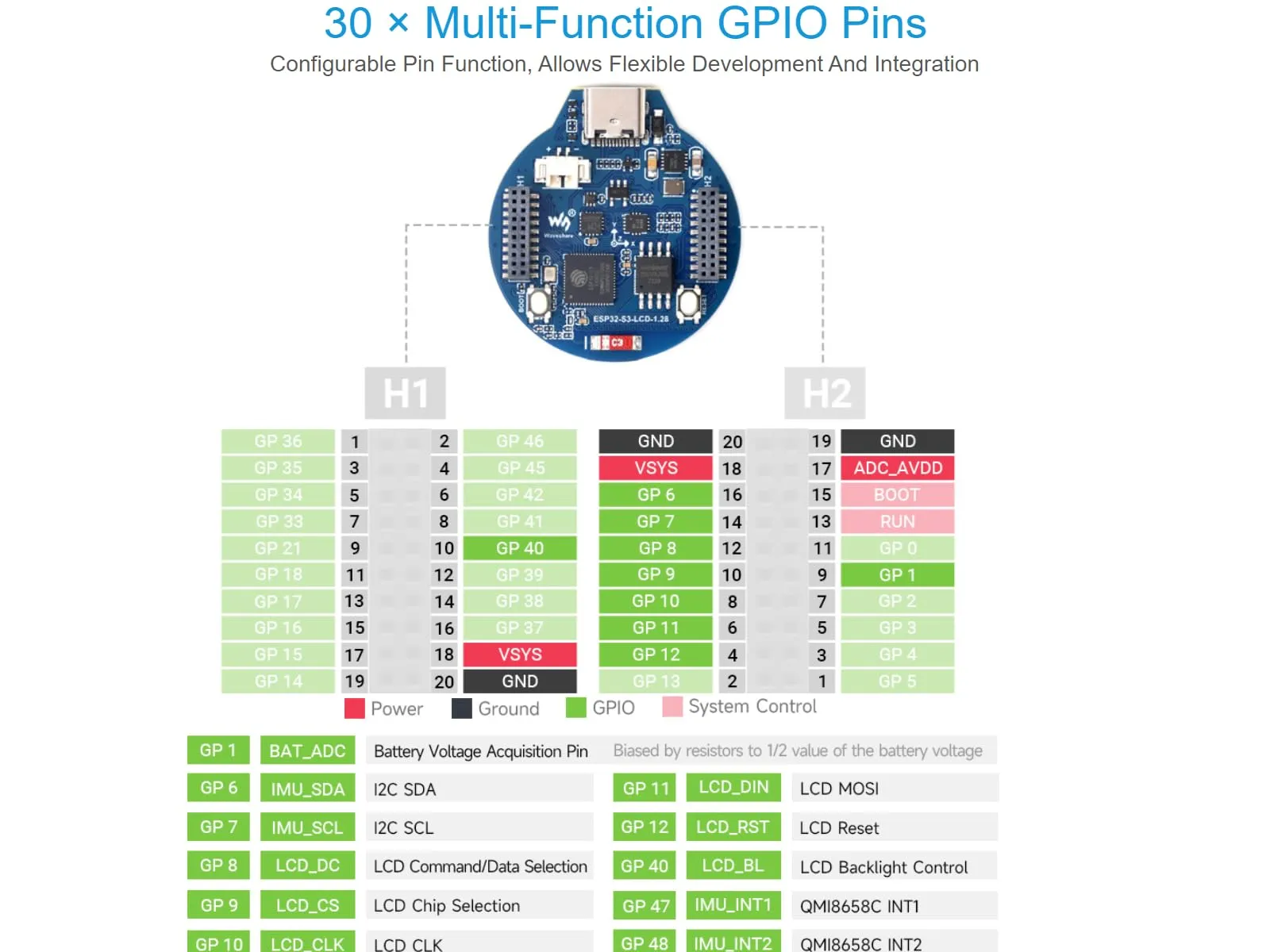

Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
